1863480000 | Weidmüller

Pin header, 16 pole, pitch 3.81 mm, straight, black, 1863480000

Order No.: 52P3720
EAN: 4032248428670
MPN:
1863480000
SC-SMT 3.81/16/180LF 3.2SN BK BX

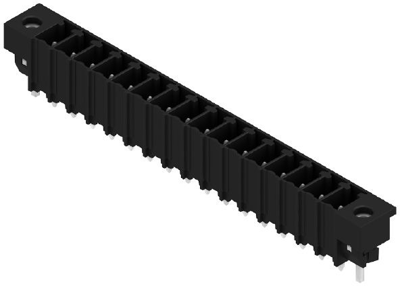

1863480000 Weidmüller PCB Connection Systems Image 1

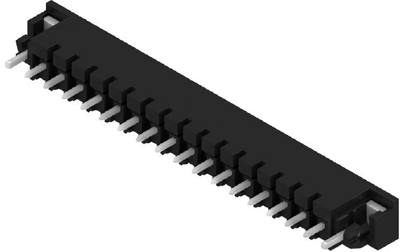

1863480000 Weidmüller PCB Connection Systems Image 2

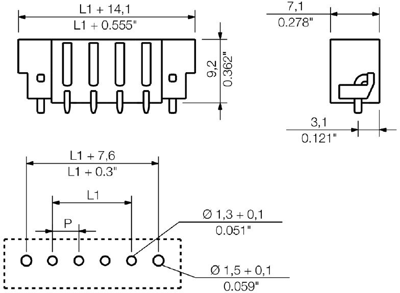

1863480000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.3911 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
4.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3911 €

Male connector, 1863480000, Weidmüller

PCB Connector, Solder Flange, THT/THR Solder Termination, 3.81 mm, No. of Poles: 16, 180°, 3.2 mm, tinned, black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Contact type pin
Pin number 16 pole
Grid 3.81 mm
Colour black
Version pin header
Connection PCB connection
Rated voltage 320 V
Rated current 17.5 A
Orientation straight
Number of rows 1
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
