1863460000 | Weidmüller

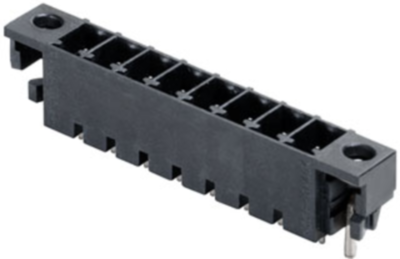

Pin header, 15 pole, pitch 3.81 mm, straight, black, 1863460000
Order No.: 52P3719
EAN: 4032248428663
MPN:
1863460000
SC-SMT 3.81/15/180LF 3.2SN BK BX
Unit Price (€ / pc.)
4.1531 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1863460000, Weidmüller
PCB connector, solder flange, THT/THR solder termination, 3.81 mm, no. of poles: 15, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | PCB connection | |
| Pin number | 15 pole | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
