1863200000 | Weidmüller

Pin header, 8 pole, pitch 3.81 mm, angled, black, 1863200000

Order No.: 52P3694
EAN: 4032248428397
MPN:
1863200000
SC-SMT 3.81/08/90G 1.5SN BK RL

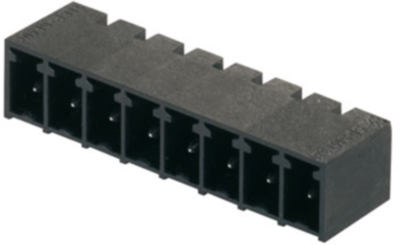

1863200000 Weidmüller PCB Connection Systems Image 1
1863200000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
894.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
2.2372 €

Male connector, 1863200000, Weidmüller

PCB connectors, side entry, THT/THR solder termination, 3.81 mm, no. of poles: 8, 90°, 1.5 mm, tin plated, black, tape (Ø 330 mm); Rs = 10

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Number of rows 1
Pin number 8 pole
Orientation angled
Rated voltage 320 V
Version pin header
contact surface tin-plated
Additional parts equipped
Rated current 17.5 A
Contact type pin
Colour black
Grid 3.81 mm
Connection PCB connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
