1862940000 | Weidmüller

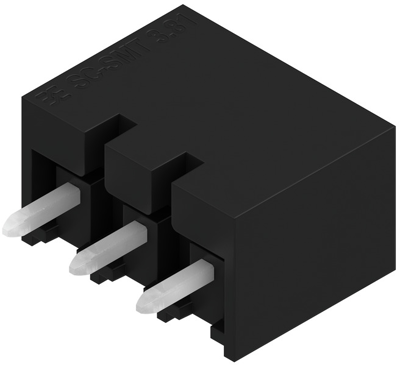

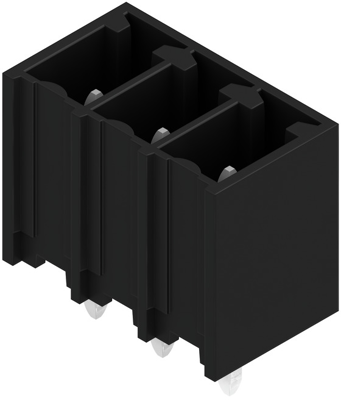

Pin header, 3 pole, pitch 3.81 mm, straight, black, 1862940000
Order No.: 52P3673
EAN: 4032248428120
MPN:
1862940000
SC-SMT 3.81/03/180G 3.2SN BK BX
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
50 pcs.
0.8330 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1862940000, Weidmüller
Board Connector, closed side, THT/THR solder termination, 3.81 mm, no. of poles: 3, 180°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Orientation | straight | |
| Number of rows | 1 | |
| Colour | black | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Rated current | 17.5 A | |
| Pin number | 3 pole | |
| Version | pin header | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
