1862790000 | Weidmüller

Pin header, 5 pole, pitch 3.81 mm, angled, black, 1862790000

Order No.: 52P3660
EAN: 4032248427970
MPN:
1862790000
SC-SMT 3.81/05/90LF 1.5SN BK RL

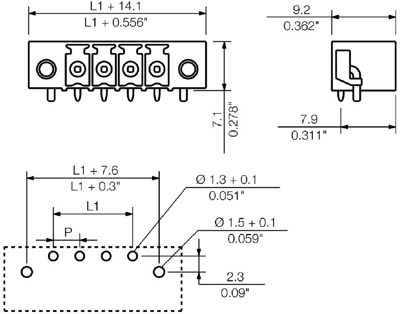

1862790000 Weidmüller PCB Connection Systems Image 1

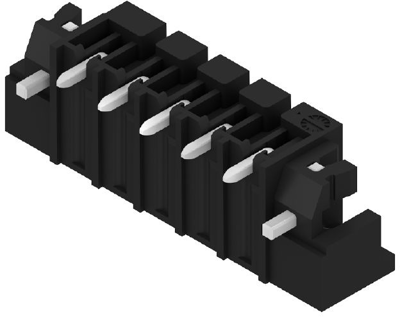

1862790000 Weidmüller PCB Connection Systems Image 2
1862790000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
2.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2015 €

Male connector, 1862790000, Weidmüller

Printed circuit board connector, solder flange, THT/THR solder termination, 3.81 mm, no. of poles: 5, 90°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs = 10

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour black
contact surface tin-plated
Rated current 17.5 A
Grid 3.81 mm
Pin number 5 pole
Version pin header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
