1862720000 | Weidmüller
Pin header, 2 pole, pitch 3.81 mm, angled, black, 1862720000
Order No.: 50P0119
EAN: 4032248427949
MPN:
1862720000
SC-SMT 3.81/02/90LF 1.5SN BK RL
Unit Price (€ / pc.)
1.9397 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7969 €
50 pcs.
1.6779 €
100 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale

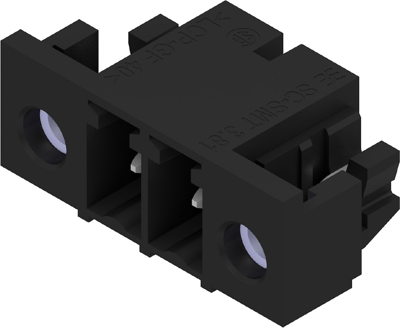

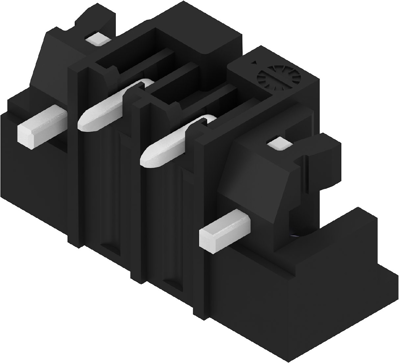

PCB plug-in connector, 1862720000, Weidmüller

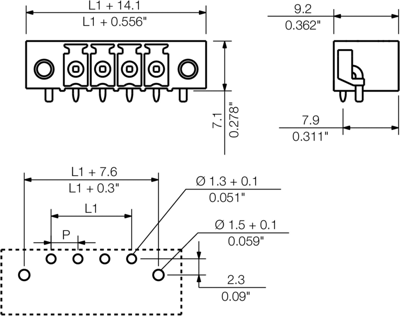

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.81 mm, Number of poles: 2, 90°, Solder pin length (l): 1.5 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Type of locking | No | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Rated current | 17.5 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
