1862530000 | Weidmüller

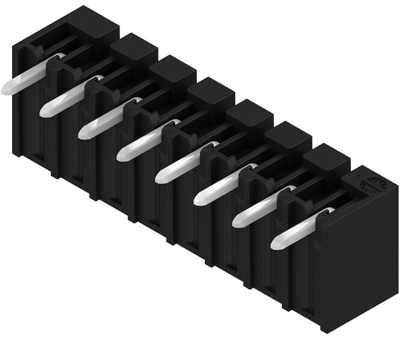

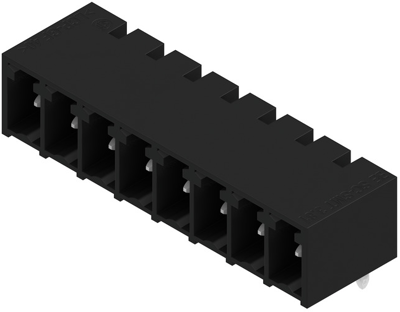

Pin header, 8 pole, pitch 3.81 mm, angled, black, 1862530000
Order No.: 52P3643
EAN: 4032248427673
MPN:
1862530000
SC-SMT 3.81/08/90G 3.2SN BK BX
Unit Price (€ / pc.)
2.6656 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
2.67 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6656 €
10 pcs.
2.4514 €
50 pcs.
2.2253 €
100 pcs.
1.9992 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1862530000, Weidmüller
Printed Circuit Board Connector, closed side, THT/THR solder termination, 3.81 mm, no. of poles: 8, 90°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Number of rows | 1 | |
| Colour | black | |
| Rated current | 17.5 A | |
| contact surface | tin-plated | |
| Connection | PCB connection | |
| Orientation | angled | |
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
