1862380000 | Weidmüller

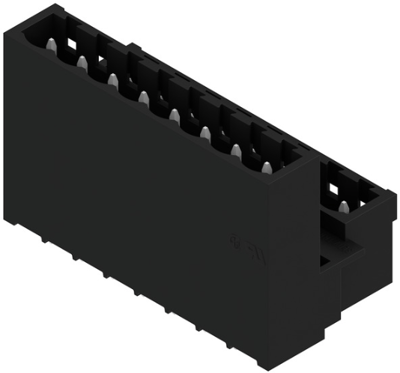

Pin header, 16 pole, pitch 5 mm, straight, black, 1862380000
Order No.: 52P3636
EAN: 4032248426935
MPN:
1862380000
SLDV-THR 5.00/16/180G 3.2SN BK BX
Unit Price (€ / pc.)
8.2229 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
8.22 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2229 €
10 pcs.
7.6636 €
50 pcs.
6.9615 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1862380000, Weidmüller
PCB Connector, closed side, THT/THR solder termination, 5.00 mm, no. of poles: 16, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 5 mm | |
| Pin number | 16 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
