1850940000 | Weidmüller
Pin header, 8 pole, pitch 10.16 mm, straight, black, 1850940000
Order No.: 52P3413
EAN: 4032248381869
MPN:
1850940000
SU 10.16HP/08/180SF 3.5AG BK BX
Unit Price (€ / pc.)
11.9952 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

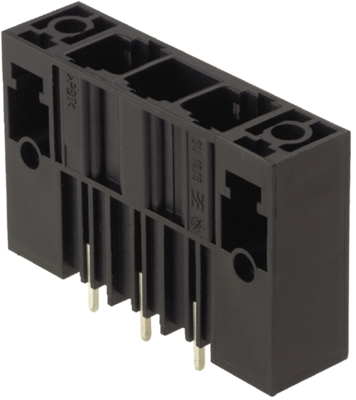

Male connector, 1850940000, Weidmüller
Printed circuit board connector, screw / snap-in flange, THT solder termination, 10.16 mm, no. of poles: 8, 180°, 3.5 mm, silver plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | silver-plated | |
| Rated voltage | 1 kV | |
| Rated current | 78.3 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 10.16 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
