1846870000 | Weidmüller

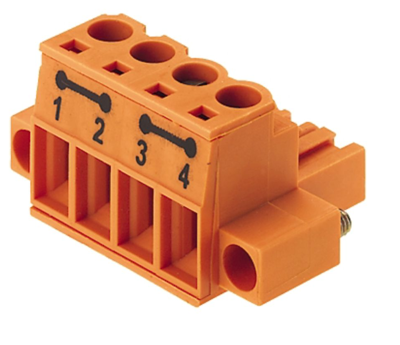

Socket header, 4 pole, pitch 5.08 mm, straight, orange, 1846870000
Order No.: 50P5187
EAN: 4032248362684
MPN:
1846870000
BLZ 5.08/04/180FQV2 SN OR BX PRT
Unit Price (€ / pc.)
7.6041 € *
Available in 6 Days: 300 pcs. - if ordered today
Total Price:
7.60 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6041 €
10 pcs.
7.0805 €
50 pcs.
6.6402 €
100 pcs.
6.2356 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1846870000, Weidmüller
Female plugs with clamping-yoke screw connections for connecting wire, with straight 180° wire outlet direction and internal cross-connections between connections 1-2 and 3-4. Bus current at 4 mm² (without wire-end ferrule) is up to 32 A. The female plugs can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Rated current | 17.5 A | |
| Colour | orange | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 5.08 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
