1843960000 | Weidmüller

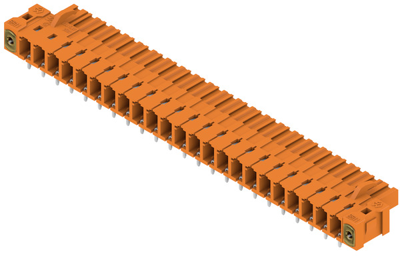

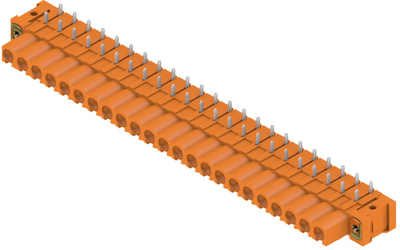

Pin header, 23 pole, pitch 5.08 mm, angled, orange, 1843960000
Order No.: 52P3175
EAN: 4032248355716
MPN:
1843960000
BLL 5.08/23/90FI 3.2SN OR BX
Unit Price (€ / pc.)
14.2681 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
14.27 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2681 €
10 pcs.
13.2685 €
50 pcs.
12.1975 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1843960000, Weidmüller
PCB Connector, Male Connector, Flange Inverted, THT Solder Termination, 5.08 mm, No. of Poles: 23, 90°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5.08 mm | |
| Pin number | 23 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
