1843940000 | Weidmüller

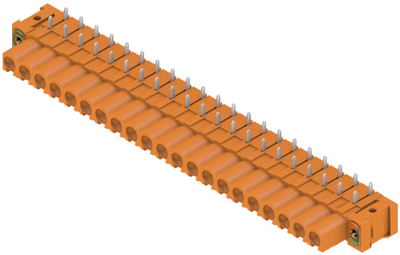

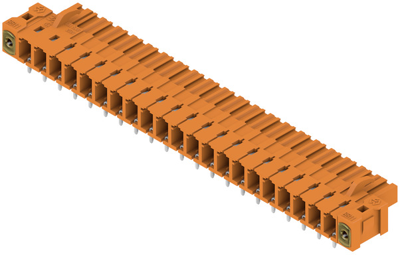

Pin header, 21 pole, pitch 5.08 mm, angled, orange, 1843940000
Order No.: 52P3173
EAN: 4032248355693
MPN:
1843940000
BLL 5.08/21/90FI 3.2SN OR BX
Unit Price (€ / pc.)
13.0781 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
13.08 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0781 €
10 pcs.
12.1618 €
50 pcs.
11.0670 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1843940000, Weidmüller
Printed circuit board connectors, male connector, flange inverted, THT solder termination, 5.08 mm, no. of poles: 21, 90°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Pin number | 21 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | socket header | |
| Rated current | 23 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
