1843810000 | Weidmüller
Pin header, 8 pole, pitch 5.08 mm, angled, orange, 1843810000
Order No.: 52P3160
EAN: 4032248355563
MPN:
1843810000
BLL 5.08/08/90FI 3.2SN OR BX
Unit Price (€ / pc.)
5.4026 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
5.40 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4026 €
10 pcs.
5.0337 €
50 pcs.
4.5815 €
*incl. VAT plus shipping costs
Subject to prior sale

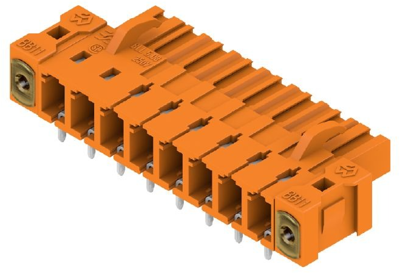

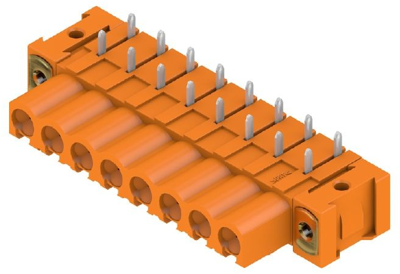

Male connector, 1843810000, Weidmüller
PCB Connector, Male Connector, Inverted Flange, THT Solder Termination, 5.08 mm, No. of Poles: 8, 90°, 3.2 mm, Tin Plated, Orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Rated voltage | 400 V | |
| Pin number | 8 pole | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Colour | orange | |
| Grid | 5.08 mm | |
| Rated current | 23 A | |
| Orientation | angled | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
