1842900000 | Weidmüller
Pin header, 15 pole, pitch 3.5 mm, straight, black, 1842900000
Order No.: 52P3143
EAN: 4032248354368
MPN:
1842900000
SL-SMT 3.50/15/180F 3.2SN BK BX
Unit Price (€ / pc.)
5.6525 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
5.65 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6525 €
10 pcs.
5.2479 €
50 pcs.
4.7838 €
*incl. VAT plus shipping costs
Subject to prior sale

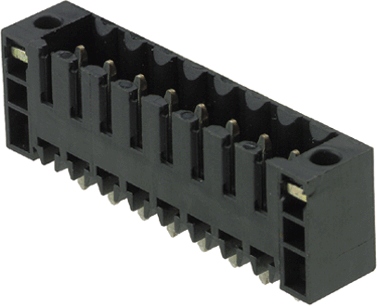

Male connector, 1842900000, Weidmüller
Printed Circuit Board Connector, flange, THT/THR solder termination, 3.50 mm, no. of poles: 15, 180°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 3.5 mm | |
| Pin number | 15 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
