1842670000 | Weidmüller

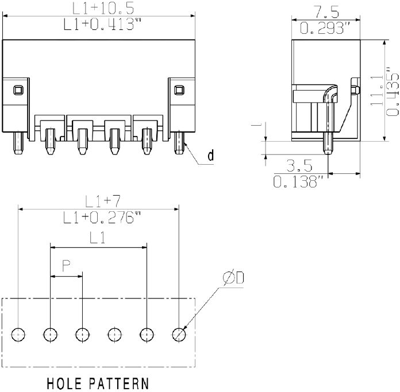

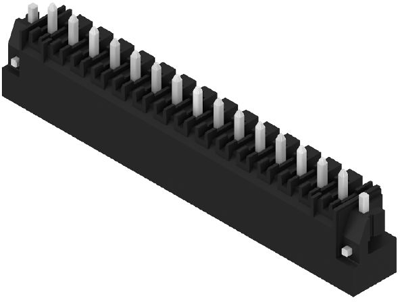

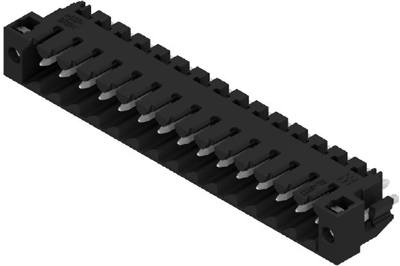

Pin header, 15 pole, pitch 3.5 mm, straight, black, 1842670000
Order No.: 52P3120
EAN: 4032248354030
MPN:
1842670000
SL-SMT 3.50/15/180LF 3.2SN BK BX
Unit Price (€ / pc.)
5.9619 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
5.96 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9619 €
10 pcs.
5.5335 €
50 pcs.
5.0337 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1842670000, Weidmüller
Printed circuit board connector, solder flange, THT/THR solder connection, 3.50 mm, number of poles: 15, 180°, 3.2 mm, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 3.5 mm | |
| Pin number | 15 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
