1842570000 | Weidmüller

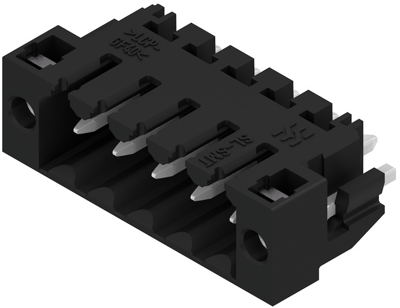

Pin header, 5 pole, pitch 3.5 mm, straight, black, 1842570000
Order No.: 52P3110
EAN: 4032248353934
MPN:
1842570000
SL-SMT 3.50/05/180LF 3.2SN BK BX
Unit Price (€ / pc.)
2.6299 € *
Available in 6 Days: 360 pcs. - if ordered today
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
2.4633 €
50 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1842570000, Weidmüller
PCB connectors, solder flange, THT/THR solder termination, 3.50 mm, no. of poles: 5, 180°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| contact surface | tin-plated | |
| Connection | PCB connection | |
| Number of rows | 1 | |
| Colour | black | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated current | 15 A | |
| Rated voltage | 320 V | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Version | pin header | |
| Grid | 3.5 mm |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
