1842550000 | Weidmüller
Pin header, 3 pole, pitch 3.5 mm, straight, black, 1842550000
Order No.: 52P3108
EAN: 4032248353910
MPN:
1842550000
SL-SMT 3.50/03/180LF 3.2SN BK BX
Unit Price (€ / pc.)
1.9278 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.7850 €
50 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

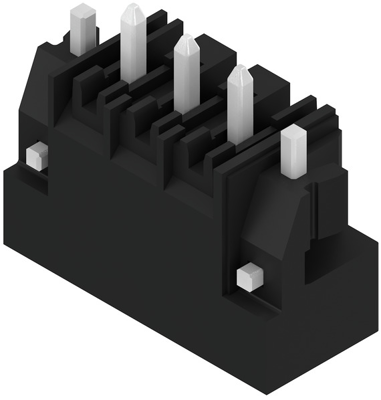

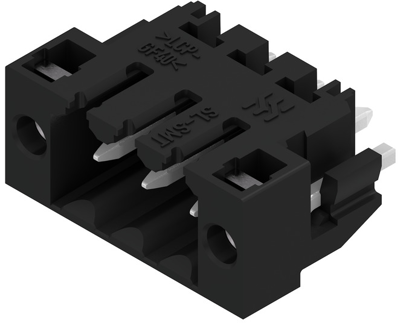

Male connector, 1842550000, Weidmüller
Board Connector, solder flange, THT/THR solder termination, 3.50 mm, no. of poles: 3, 180°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Orientation | straight | |
| Number of rows | 1 | |
| Colour | black | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Rated current | 15 A | |
| Pin number | 3 pole | |
| Version | pin header | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
