1841840000 | Weidmüller

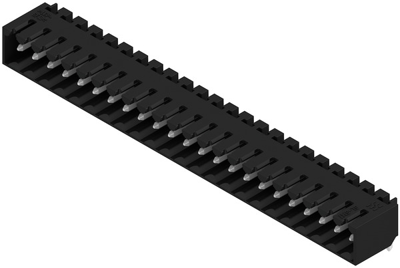

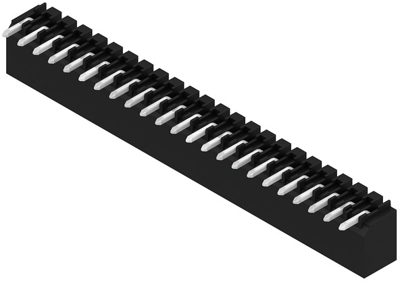

Pin header, 23 pole, pitch 3.5 mm, angled, black, 1841840000
Order No.: 52P3038
EAN: 4032248353194
MPN:
1841840000
SL-SMT 3.50/23/90G 3.2SN BK BX
Unit Price (€ / pc.)
7.3899 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
7.39 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3899 €
10 pcs.
6.8544 €
50 pcs.
6.2475 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1841840000, Weidmüller
Board Connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 23, 90°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 15 A | |
| Orientation | angled | |
| Pin number | 23 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
