1838560000 | Weidmüller
Pin header, 14 pole, pitch 5.08 mm, straight, black, 1838560000
Order No.: 52P2854
EAN: 4032248348626
MPN:
1838560000
SL-SMT 5.08HC/14/180LF 3.2SN BK BX
Unit Price (€ / pc.)
5.1646 € *
Available in 6 Days: 90 pcs. - if ordered today
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1646 €
10 pcs.
4.8076 €
50 pcs.
4.3673 €
*incl. VAT plus shipping costs
Subject to prior sale

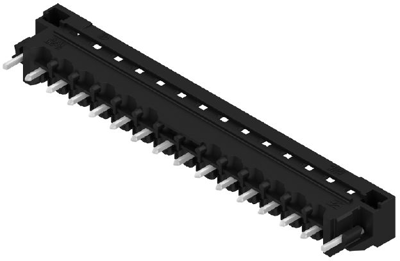

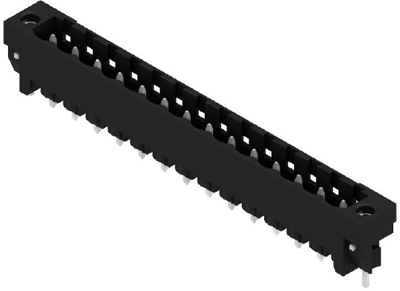

Male connector, 1838560000, Weidmüller
Printed Circuit Board Connector, Male Connector, Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 14, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 14 pole | |
| Number of rows | 1 | |
| Colour | black | |
| Rated current | 27.5 A | |
| contact surface | tin-plated | |
| Connection | PCB connection | |
| Orientation | straight | |
| Additional parts | equipped | |
| Rated voltage | 400 V | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
