1837850000 | Weidmüller
Pin header, 24 pole, pitch 5.08 mm, angled, black, 1837850000
Order No.: 52P2784
EAN: 4032248347667
MPN:
1837850000
SL-SMT 5.08HC/24/90F 3.2SN BK BX
Unit Price (€ / pc.)
7.9016 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
7.90 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9016 €
10 pcs.
7.3423 €
50 pcs.
6.6759 €
*incl. VAT plus shipping costs
Subject to prior sale

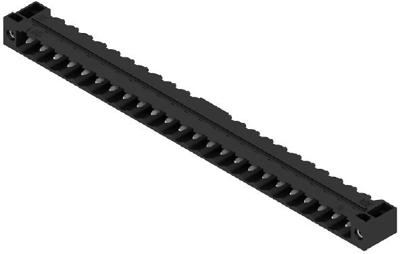

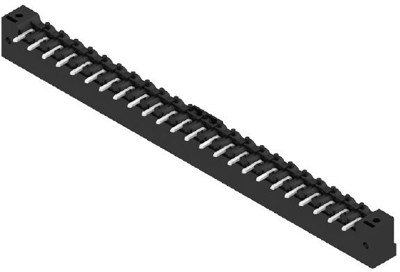

Male connector, 1837850000, Weidmüller
Board Connector, Male Connector, Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 24, 90°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 400 V | |
| Orientation | angled | |
| Pin number | 24 pole | |
| Version | pin header | |
| Colour | black | |
| Grid | 5.08 mm | |
| Rated current | 27.5 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
