1829230000 | Weidmüller
Pin header, 24 pole, pitch 5.08 mm, straight, black, 1829230000
Order No.: 52P2710
EAN: 4032248335923
MPN:
1829230000
SLDV-THR 5.08/24/180FLF 1.5SN BK BX
Unit Price (€ / pc.)
19.3970 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
19.40 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3970 €
10 pcs.
17.8500 €
50 pcs.
16.2435 €
100 pcs.
14.6132 €
*incl. VAT plus shipping costs
Subject to prior sale

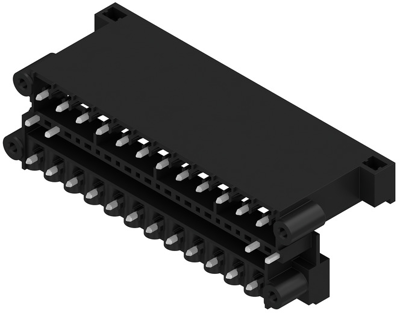

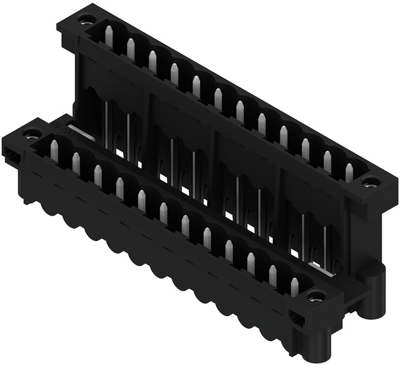

Male connector, 1829230000, Weidmüller
PCB Connector, Male Connector, Flange / Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 24, 180°, 1.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 5.08 mm | |
| Pin number | 24 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
