1829190000 | Weidmüller

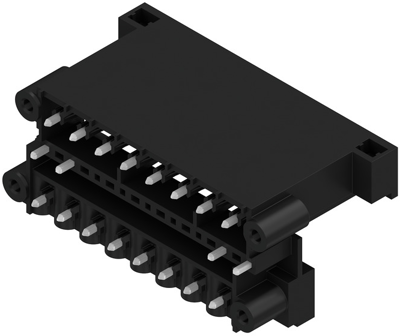

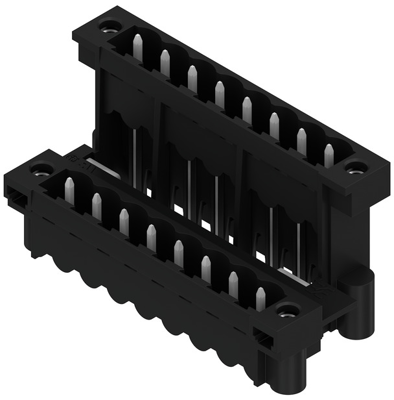

Pin header, 16 pole, pitch 5.08 mm, straight, black, 1829190000
Order No.: 52P2709
EAN: 4032248335886
MPN:
1829190000
SLDV-THR 5.08/16/180FLF 1.5SN BK BX
Unit Price (€ / pc.)
10.6743 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1829190000, Weidmüller
PCB Connector, Male Connector, Flange / Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 16, 180°, 1.5 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 16 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
