1829120000 | Weidmüller
Pin header, 26 pole, pitch 5.08 mm, straight, black, 1829120000
Order No.: 52P2707
EAN: 4032248335817
MPN:
1829120000
SLDV-THR 5.08/26/180FLF 3.2SN BK BX
Unit Price (€ / pc.)
19.7183 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
19.72 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7183 €
10 pcs.
18.1356 €
50 pcs.
16.6957 €
100 pcs.
15.1844 €
*incl. VAT plus shipping costs
Subject to prior sale

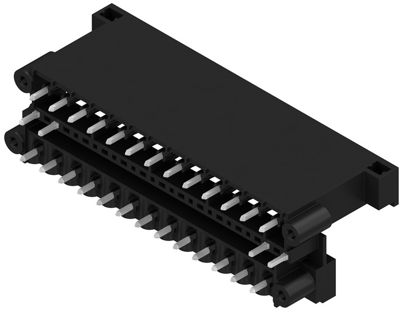

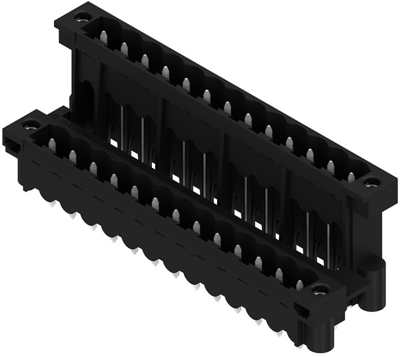

Male connector, 1829120000, Weidmüller
PCB Connector, Male Connector, Flange / Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 26, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 26 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
