1829090000 | Weidmüller

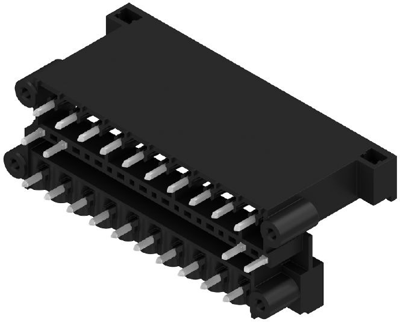

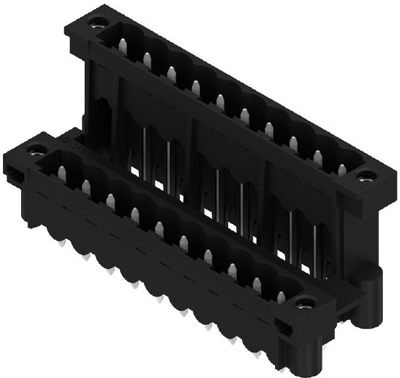

Pin header, 20 pole, pitch 5.08 mm, straight, black, 1829090000
Order No.: 52P2704
EAN: 4032248335787
MPN:
1829090000
SLDV-THR 5.08/20/180FLF 3.2SN BK BX
Unit Price (€ / pc.)
12.2570 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1829090000, Weidmüller
PCB Connector, Male Connector, Flange / Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 20, 180°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 15 A | |
| Grid | 5.08 mm | |
| Pin number | 20 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
