1828770000 | Weidmüller

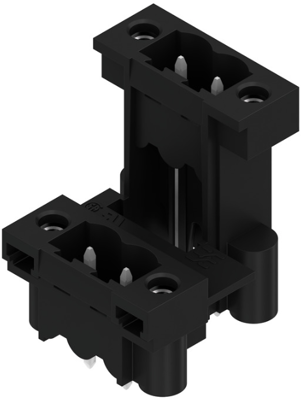

Pin header, 4 pole, pitch 5.08 mm, straight, black, 1828770000

Order No.: 52P2674
EAN: 4032248335442
MPN:
1828770000
SLDV-THR 5.08/04/180F 3.2SN BK BX
1828770000 Weidmüller PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
4.879 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
4.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.879 €

Male connector, 1828770000, Weidmüller

Printed Circuit Board Connector, Male Connector, Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 4, 180°, 3.2 mm, Tin Plated, Black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated voltage 400 V
Orientation straight
Pin number 4 pole
Version pin header
Colour black
Grid 5.08 mm
Rated current 15 A
Contact type pin
Number of rows 2
Connection PCB connection
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
