1821160000 | Weidmüller
Pin header, 2 pole, pitch 5.08 mm, angled, black, 1821160000
Order No.: 52P2466
EAN: 4032248319800
MPN:
1821160000
SL-SMT 5.08HC/02/90 1.5SN BK RL
Unit Price (€ / pc.)
1.0948 € *
Available: 0 pcs.
Available in 6 Days: 700 pcs.
Leadtime: On Request **

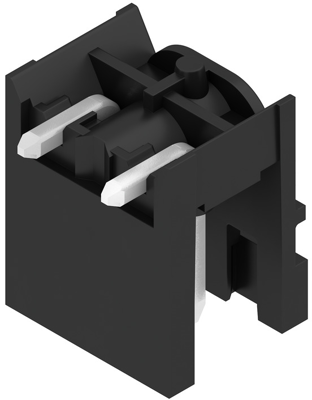

Male connector, 1821160000, Weidmüller

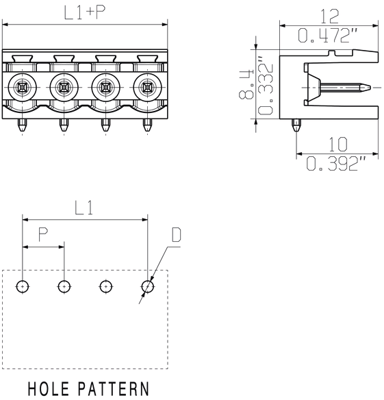

Printed circuit board connector, male connector, side open, THT/THR solder termination, 5.08 mm, no. of poles: 2, 90°, 1.5 mm, tin plated, black, tape (Ø 330 mm);
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 27.5 A | |
| Orientation | angled | |
| Pin number | 2 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
