1820780000 | Weidmüller

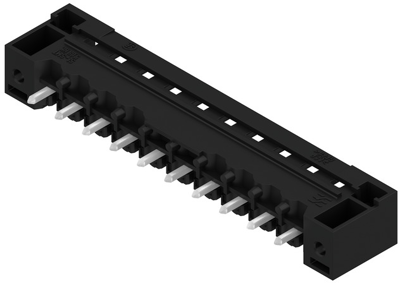

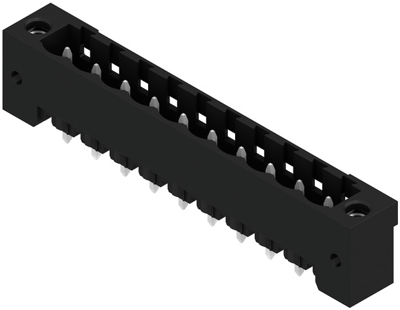

Pin header, 10 pole, pitch 5.08 mm, straight, black, 1820780000
Order No.: 52P2446
EAN: 4032248317646
MPN:
1820780000
SL-SMT 5.08HC/10/180F 3.2SN BK BX
Unit Price (€ / pc.)
3.8437 € *
Next delivery: 10 pcs. on 2025-09-09
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.5700 €
50 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1820780000, Weidmüller
PCB Connector, Male Connector, Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 10, 180°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Rated current | 27.5 A | |
| Version | pin header | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Grid | 5.08 mm | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
