1820170000 | Weidmüller

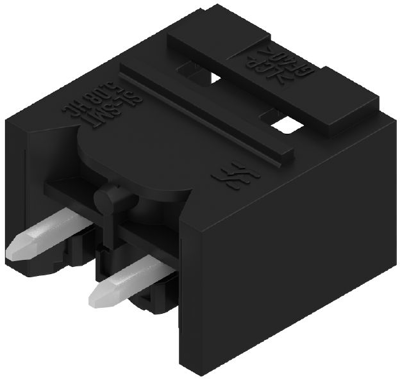

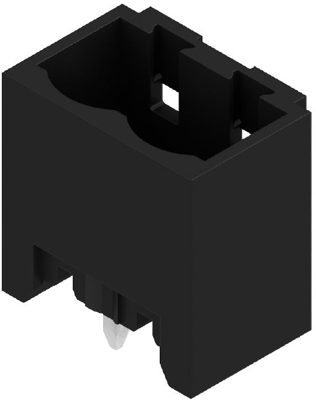

Pin header, 2 pole, pitch 5.08 mm, straight, black, 1820170000
Order No.: 52P2433
EAN: 4032248315680
MPN:
1820170000
SL-SMT 5.08HC/02/180G 1.5SN BK RL
Unit Price (€ / pc.)
1.1662 € *
Standard delivery time from the manufacturer is: 5 Weeks
Male connector, 1820170000, Weidmüller
Printed circuit board connector, male connector, lateral closed, THT/THR solder termination, 5.08 mm, no. of poles: 2, 180°, 1.5 mm, tin plated, black, Tape (Ø 33)
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 2 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 27.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
