1813590000 | Weidmüller

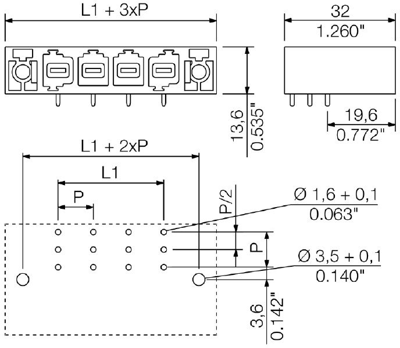

Pin header, 4 pole, pitch 10.16 mm, angled, black, 1813590000
Order No.: 52P2263
EAN: 4032248297818
MPN:
1813590000
SU 10.16HP/04/90F 3.5AG BK BX
Unit Price (€ / pc.)
6.1880 € *
Available in 6 Days: 60 pcs. - if ordered today

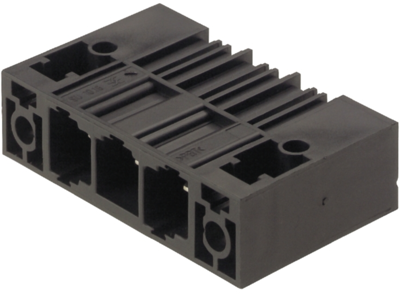

Male connector, 1813590000, Weidmüller
PCB connector, latching flange, THT solder termination, 10.16 mm, no. of poles: 4, 90°, 3.5 mm, silver plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | silver-plated | |
| Rated current | 78.3 A | |
| Grid | 10.16 mm | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
