1813380000 | Weidmüller

Pin header, 7 pole, pitch 10.16 mm, angled, black, 1813380000

Order No.: 52P2242
EAN: 4032248297573
MPN:
1813380000
SU 10.16HP/07/90G 3.5AG BK BX
Weidmüller
1813380000 Weidmüller PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
9.7461 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
9.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.7461 €

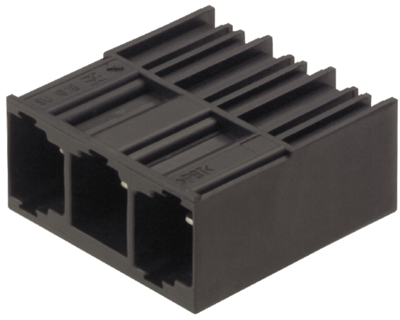

Male connector, 1813380000, Weidmüller

Board Connector, lateral closed, THT solder termination, 10.16 mm, no. of poles: 7, 90°, 3.5 mm, silver plated, black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface silver-plated
Rated voltage 1 kV
Rated current 78.3 A
Orientation angled
Pin number 7 pole
Grid 10.16 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
