Pin header, 3 pole, pitch 3.5 mm, angled, black, 1805320000

Order No.: 52P2015
EAN: 4032248269570
MPN:
1805320000
SL-SMT 3.50/03/90LF 1.5SN BK RL

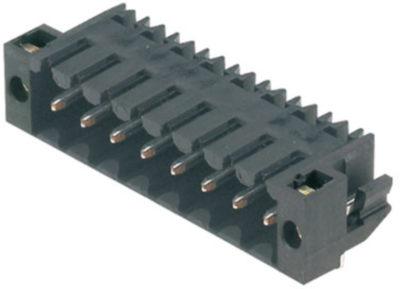

1805320000 Weidmüller PCB Connection Systems Image 1
1805320000 Weidmüller PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
1.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7374 €

Male connector, 1805320000, Weidmüller

PCB connector, solder flange, THT/THR solder termination, 3.50 mm, no. of poles: 3, 90°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs = 10

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Number of rows 1
Rated current 15 A
Contact type pin
Grid 3.5 mm
Pin number 3 pole
Orientation angled
Rated voltage 320 V
Additional parts equipped
Connection PCB connection
contact surface tin-plated
Colour black
Version pin header
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
