1804340000 | Weidmüller
Pin header, 12 pole, pitch 3.5 mm, angled, black, 1804340000
Order No.: 52P1967
EAN: 4032248288533
MPN:
1804340000
SL-SMT 3.50/12/90LF 3.2SN BK BX
Unit Price (€ / pc.)
5.1170 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1170 €
10 pcs.
4.7600 €
50 pcs.
4.2721 €
*incl. VAT plus shipping costs
Subject to prior sale

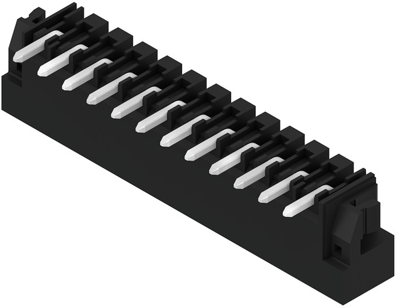

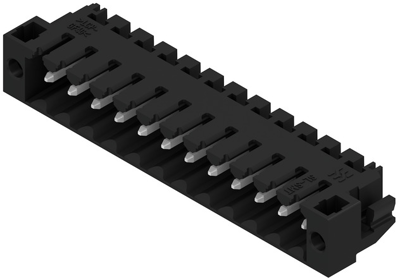

Male connector, 1804340000, Weidmüller
Printed Circuit Board Connector, solder flange, THT/THR solder termination, 3.50 mm, no. of poles: 12, 90°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Grid | 3.5 mm | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Pin number | 12 pole | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated current | 15 A | |
| Version | pin header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
