1799100000 | Weidmüller

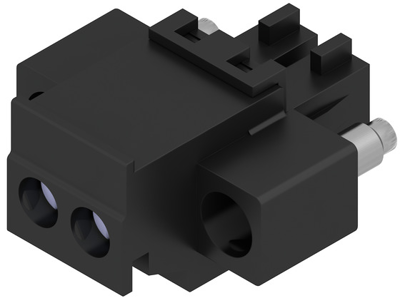

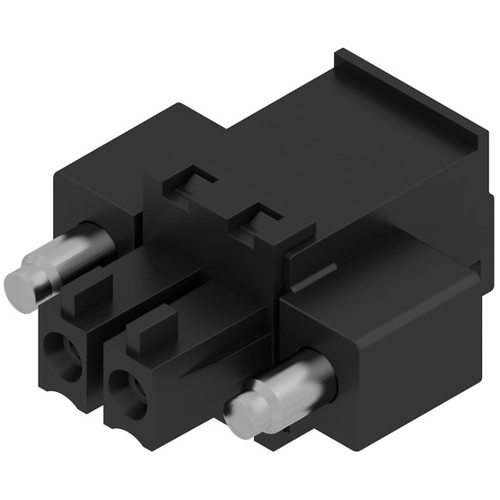

Socket header, 2 pole, pitch 3.81 mm, angled, black, 1799100000
Order No.: 52P1918
EAN: 4032248243990
MPN:
1799100000
BCZ 3.81/02/270F SN BK BX
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0706 €
50 pcs.
1.8921 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1799100000, Weidmüller
PCB connector, flange, 3.81 mm, no. of poles: 2, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| contact surface | tin-plated | |
| Additional parts | equipped | |
| Colour | black | |
| Connection | screw connection | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Version | socket header | |
| Rated voltage | 320 V | |
| Contact type | socket | |
| Orientation | angled | |
| Grid | 3.81 mm | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
