1798500000 | Weidmüller
Socket header, 2 pole, pitch 3.81 mm, angled, black, 1798500000
Order No.: 52P1887
EAN: 4032248243006
MPN:
1798500000
BCZ 3.81/02/90 SN BK BX
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6422 €
50 pcs.
1.4994 €
100 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

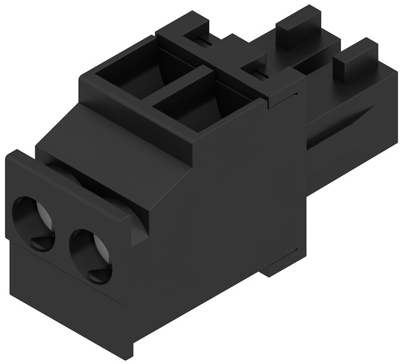

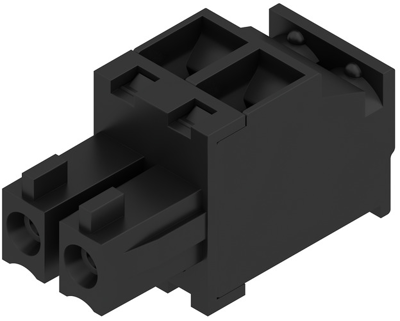

Female connector, 1798500000, Weidmüller
PCB Connector, closed side, 3.81 mm, no. of poles: 2, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | angled | |
| Colour | black | |
| Grid | 3.81 mm | |
| Connection | screw connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Pin number | 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
