1797960000 | Weidmüller

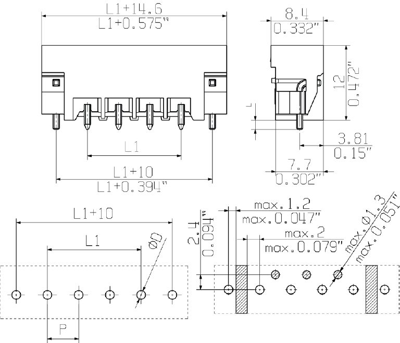

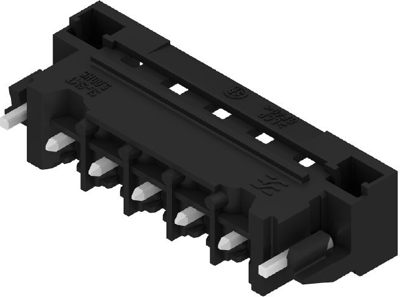

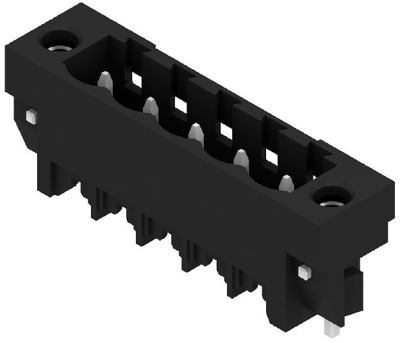

Pin header, 5 pole, pitch 5 mm, straight, black, 1797960000
Order No.: 52P1869
EAN: 4032248239962
MPN:
1797960000
SL-SMT 5.00HC/05/180LF 1.5SN BK RL
Unit Price (€ / pc.)
2.2253 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1797960000, Weidmüller
PCB Connector, Solder Flange, THT/THR Solder Termination, 5.00 mm, No. of Poles: 5, 180°, 1.5 mm, Tin Plated, Black, Tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 27.5 A | |
| Contact type | pin | |
| Grid | 5 mm | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Colour | black | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
