1797930000 | Weidmüller

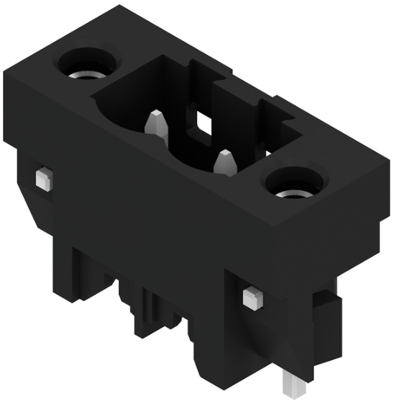

Pin header, 2 pole, pitch 5 mm, straight, black, 1797930000
Order No.: 52P1866
EAN: 4032248239931
MPN:
1797930000
SL-SMT 5.00HC/02/180LF 1.5SN BK RL
Unit Price (€ / pc.)
3.2011 € *
Available in 5 Days: 500 pcs. - if ordered today
Male connector, 1797930000, Weidmüller
PCB connectors, solder flange, THT/THR solder termination, 5.00 mm, no. of poles: 2, 180°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Grid | 5 mm | |
| Rated voltage | 400 V | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Orientation | straight | |
| Version | pin header | |
| Colour | black | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Pin number | 2 pole | |
| Rated current | 27.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
