1797920000 | Weidmüller

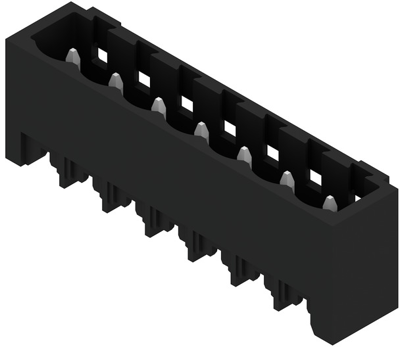

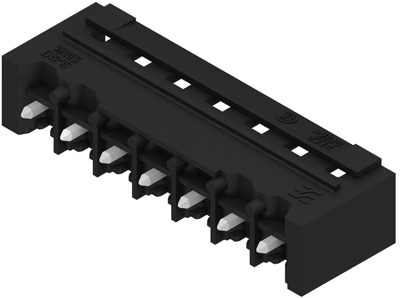

Pin header, 7 pole, pitch 5 mm, straight, black, 1797920000
Order No.: 52P1865
EAN: 4032248239924
MPN:
1797920000
SL-SMT 5.00HC/07/180G 1.5SN BK RL
Unit Price (€ / pc.)
2.023 € *
Standard delivery time from the manufacturer is: 5 Weeks
Male connector, 1797920000, Weidmüller
PCB Connector, Side-Closed, THT/THR Solder Termination, 5.00 mm, No. of Poles: 7, 180°, 1.5 mm, tinned, black, Tape (Ø 330 mm).
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 27.5 A | |
| Grid | 5 mm | |
| Pin number | 7 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
