1794210000 | Weidmüller

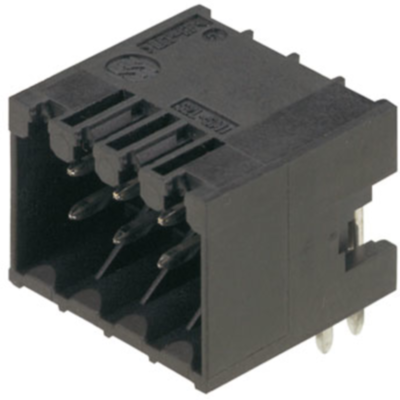

Pin header, 6 pole, pitch 3.5 mm, angled, black, 1794210000
Order No.: 52P1795
EAN: 4032248231256
MPN:
1794210000
S2L-SMT 3.50/06/90G 3.2SN BK BX
Unit Price (€ / pc.)
1.5708 € *
Standard delivery time from the manufacturer is: 5 Weeks
Male connector, 1794210000, Weidmüller
Printed Circuit Board Connector, closed side, THT/THR solder termination, 3.50 mm, no. of poles: 6, 90°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| Pin number | 6 pole | |
| Colour | black | |
| Contact type | pin | |
| Rated current | 10 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 160 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
