1793750000 | Weidmüller

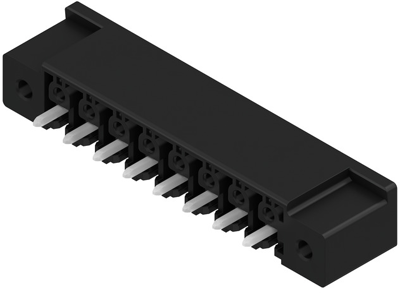

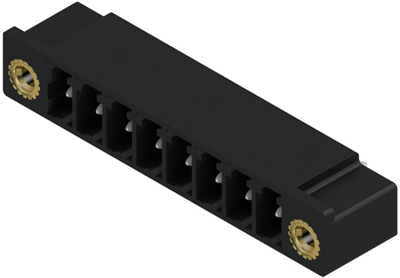

Pin header, 8 pole, pitch 3.81 mm, straight, black, 1793750000
Order No.: 52P1774
EAN: 4032248230877
MPN:
1793750000
SC 3.81/08/180F 3.2SN BK BX
Unit Price (€ / pc.)
3.1297 € *
Available in 6 Days: 210 pcs. - if ordered today
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.8679 €
50 pcs.
2.6061 €
100 pcs.
2.3562 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1793750000, Weidmüller
PCB Connector, flange, THT solder termination, 3.81 mm, no. of poles: 8, 180°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 17.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
