1793540000 | Weidmüller

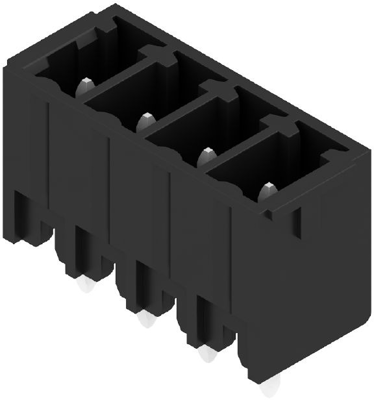

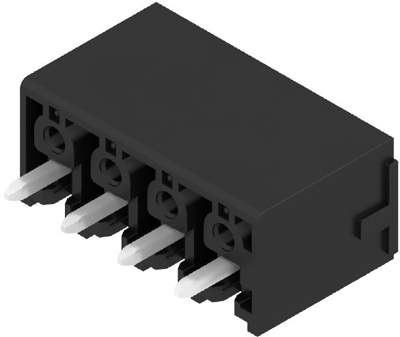

Pin header, 4 pole, pitch 3.81 mm, straight, black, 1793540000
Order No.: 52P1762
EAN: 4032248230457
MPN:
1793540000
SC 3.81/04/180G 3.2SN BK BX
Unit Price (€ / pc.)
1.2138 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
1.1186 €
50 pcs.
1.0115 €
100 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1793540000, Weidmüller
Printed circuit board connector, lateral closed, THT solder termination, 3.81 mm, no. of poles: 4, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Number of rows | 1 | |
| Grid | 3.81 mm | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Connection | PCB connection | |
| Colour | black | |
| Rated current | 17.5 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Version | pin header | |
| contact surface | tin-plated | |
| Rated voltage | 320 V |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
