1793170000 | Weidmüller

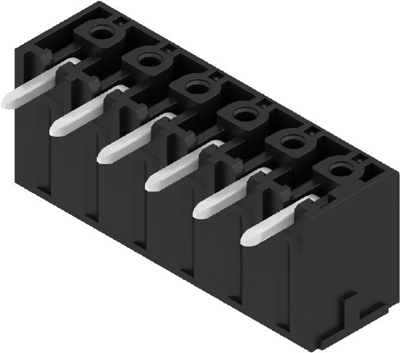

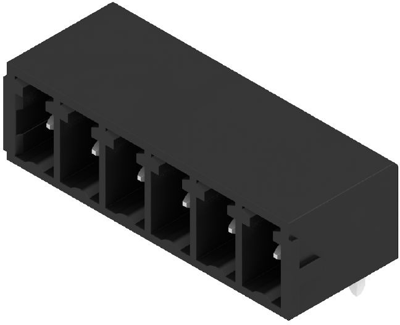

Pin header, 6 pole, pitch 3.81 mm, angled, black, 1793170000
Order No.: 52P1746
EAN: 4032248227662
MPN:
1793170000
SC 3.81/06/90G 3.2SN BK BX
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.6184 €
50 pcs.
1.4518 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1793170000, Weidmüller
Printed Circuit Board Connector, Side-Closed, THT Solder Termination, 3.81 mm, No. of Poles: 6, 90°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 6 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
