1780680000 | Weidmüller
Pin header, 4 pole, pitch 5.08 mm, angled, green, 1780680000
Order No.: 50P4147
EAN: 4032248167869
MPN:
1780680000
SLD 5.08V/04/90 3.2 SN GN BX
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
10 pcs.
1.8088 €
50 pcs.
1.6779 €
100 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1780680000, WEIDMÜLLER

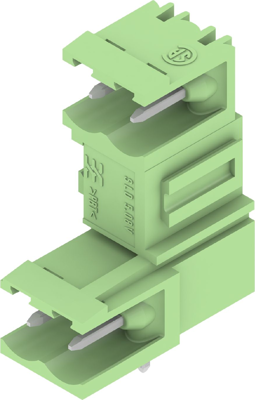

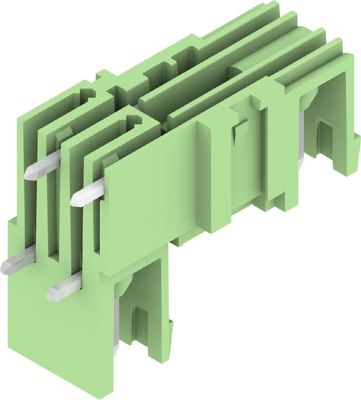

PCB plug-in connector, male header, open side, THT solder connection, 5.08 mm, Number of poles: 4, 90°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Number of rows | 2 | |
| Pin number | 4 pole | |
| Colour | green | |
| Version | pin header | |
| Rated current | 17 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
