1780650000 | Weidmüller
Pin header, 24 pole, pitch 5.08 mm, angled, black, 1780650000
Order No.: 52P1225
EAN: 4032248165957
MPN:
1780650000
SL-SMT 5.08HC/24/90LF 3.2SN BK BX
Unit Price (€ / pc.)
12.5188 € *
Available in 5 Days: 780 pcs. - if ordered today

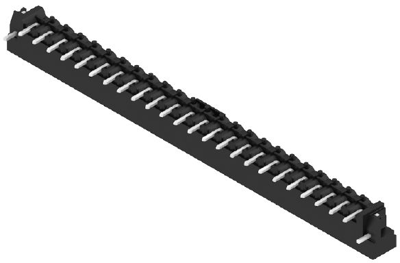

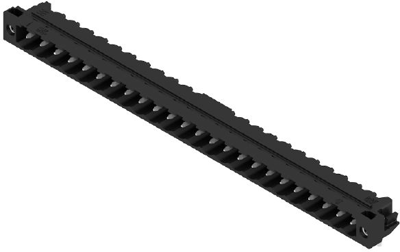

Male connector, 1780650000, Weidmüller
Printed circuit board connector, male connector, solder flange, THT/THR solder termination, 5.08 mm, no. of poles: 24, 90°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Grid | 5.08 mm | |
| Rated voltage | 400 V | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Orientation | angled | |
| Version | pin header | |
| Colour | black | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Pin number | 24 pole | |
| Rated current | 27.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
