1775352001 | Weidmüller
Pin header, 14 pole, pitch 5.08 mm, angled, black, 1775352001
Order No.: 50P4445
EAN: 4032248157334
MPN:
1775352001
SL-SMT 5.08HC/14/90LF 1.5SN BK BX
Unit Price (€ / pc.)
4.7124 € *
Available in 6 Days: 90 pcs. - if ordered today
Total Price:
4.71 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7124 €
10 pcs.
4.3911 €
50 pcs.
4.1174 €
100 pcs.
3.8675 €
*incl. VAT plus shipping costs
Subject to prior sale

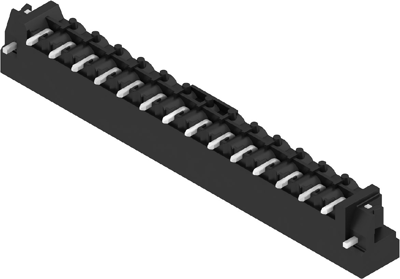

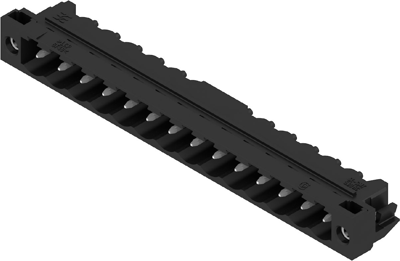

PCB plug-in connector, 1775352001, WEIDMÜLLER

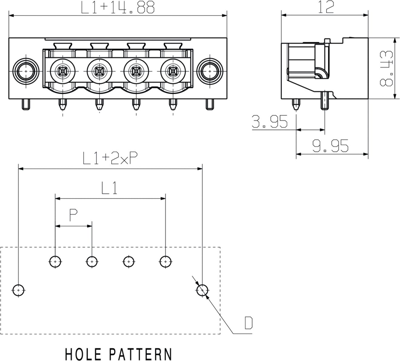

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 14, 90°, Solder pin length (l): 1.5 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Pin number | 14 pole | |
| Colour | black | |
| Version | pin header | |
| Rated current | 27.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
