1775254001 | Weidmüller

Pin header, 4 pole, pitch 5.08 mm, angled, black, 1775254001

Order No.: 52P1003
EAN: 4032248167807
MPN:
1775254001
SL-SMT 5.08HC/04/90LF 1.5SN BK RL

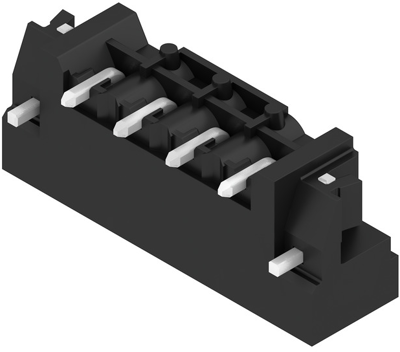

1775254001 Weidmüller PCB Connection Systems Image 1

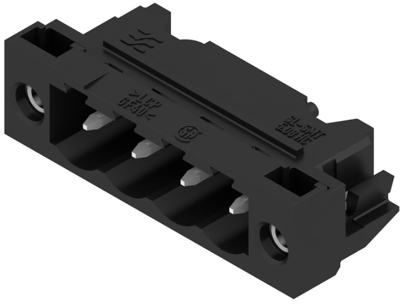

1775254001 Weidmüller PCB Connection Systems Image 2

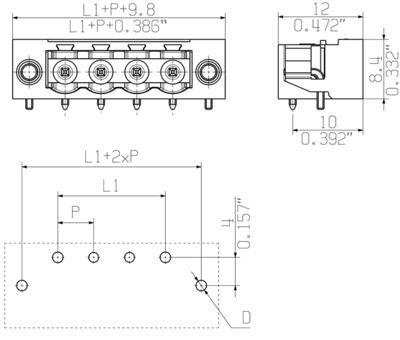

1775254001 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.0111 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0111 €

Male connector, 1775254001, Weidmüller

PCB Connector, Male Connector, Solder Flange, THT/THR Solder Termination, 5.08 mm, No. of Poles: 4, 90°, 1.5 mm, Tin Plated, Black, Tape (Ø 330 mm); Rs =

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Number of rows 1
Rated current 27.5 A
Contact type pin
Grid 5.08 mm
Pin number 4 pole
Orientation angled
Rated voltage 400 V
Additional parts equipped
Connection PCB connection
contact surface tin-plated
Colour black
Version pin header
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
