1775244001 | Weidmüller

Pin header, 3 pole, pitch 5.08 mm, angled, black, 1775244001

Order No.: 52P1001
EAN: 4032248167791
MPN:
1775244001
SL-SMT 5.08HC/03/90LF 1.5SN BK RL

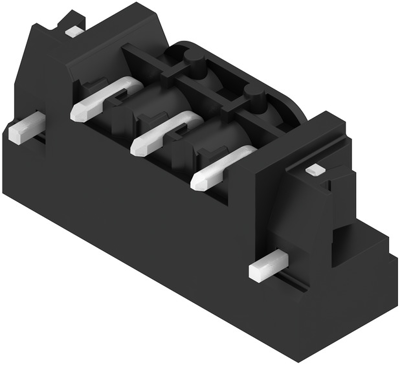

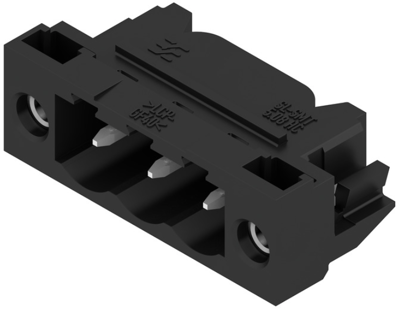

1775244001 Weidmüller PCB Connection Systems Image 1
1775244001 Weidmüller PCB Connection Systems Image 2
1775244001 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available in 6 Days: 700 pcs. - if ordered today
Total Price:
1.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7612 €

Male connector, 1775244001, Weidmüller

Printed circuit board connector, male connector, solder flange, THT/THR solder termination, 5.08 mm, no. of poles: 3, 90°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs =

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated voltage 400 V
Rated current 27.5 A
Grid 5.08 mm
Number of rows 1
Orientation angled
contact surface tin-plated
Version pin header
Colour black
Connection PCB connection
Pin number 3 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
