1775034001 | Weidmüller

Pin header, 5 pole, pitch 5.08 mm, angled, black, 1775034001

Order No.: 52P0987
EAN: 4032248167753
MPN:
1775034001
SL-SMT 5.08HC/05/90G 1.5SN BK RL

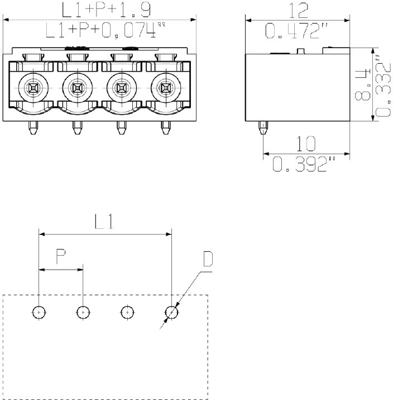

1775034001 Weidmüller PCB Connection Systems Image 1

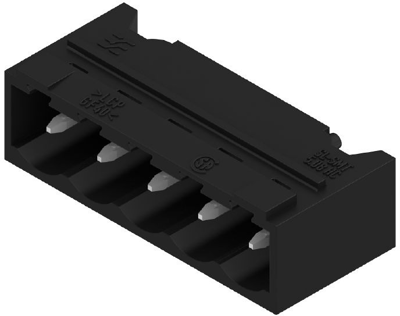

1775034001 Weidmüller PCB Connection Systems Image 2

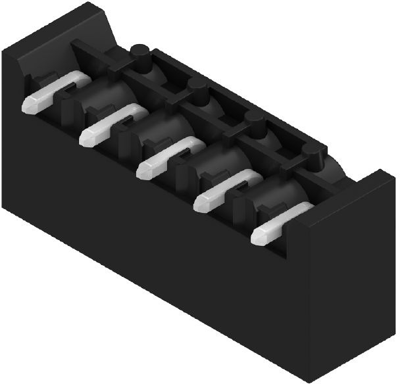

1775034001 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6184 €

Male connector, 1775034001, Weidmüller

PCB Connector, Male Header, Side Closed, THT/THR Solder Termination, 5.08 mm, No. of Poles: 5, 90°, 1.5 mm, Tin Plated, Black, Tape (Ø 330).

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour black
contact surface tin-plated
Rated current 27.5 A
Grid 5.08 mm
Pin number 5 pole
Version pin header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type pin
Rated voltage 400 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
