1775024001 | Weidmüller

Pin header, 4 pole, pitch 5.08 mm, angled, black, 1775024001

Order No.: 52P0985
EAN: 4032248167746
MPN:
1775024001
SL-SMT 5.08HC/04/90G 1.5SN BK RL

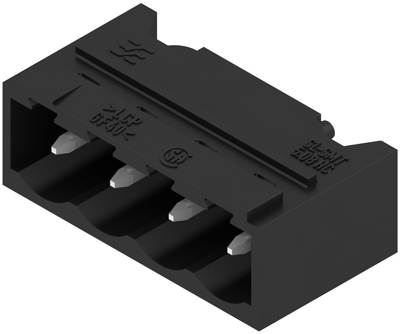

1775024001 Weidmüller PCB Connection Systems Image 1
1775024001 Weidmüller PCB Connection Systems Image 2
1775024001 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.3685 € *
Available in 6 Days: 700 pcs. - if ordered today
Total Price:
1.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3685 €

Male connector, 1775024001, Weidmüller

Printed Circuit Board Connector, Male Connector, Side Closed, THT/THR Solder Termination, 5.08 mm, No. of Poles: 4, 90°, 1.5 mm, Tin Plated, Black, Tape (Ø 330)

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated current 27.5 A
Contact type pin
Colour black
Number of rows 1
Additional parts equipped
Connection PCB connection
Orientation angled
Grid 5.08 mm
Rated voltage 400 V
Pin number 4 pole
Version pin header
contact surface tin-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
