1774982001 | Weidmüller

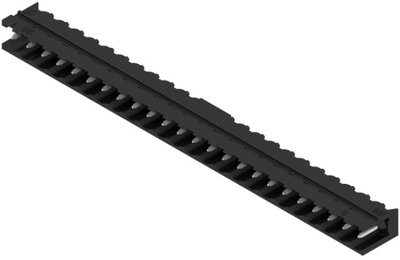

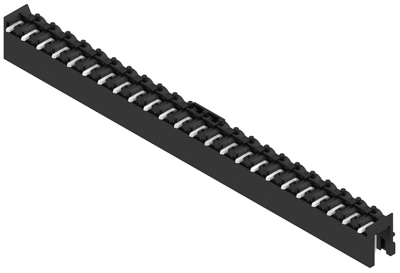

Pin header, 24 pole, pitch 5.08 mm, angled, black, 1774982001
Order No.: 52P0980
EAN: 4032248156016
MPN:
1774982001
SL-SMT 5.08HC/24/90 1.5SN BK BX
Unit Price (€ / pc.)
7.1995 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
7.20 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1995 €
10 pcs.
6.6878 €
50 pcs.
6.0928 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1774982001, Weidmüller

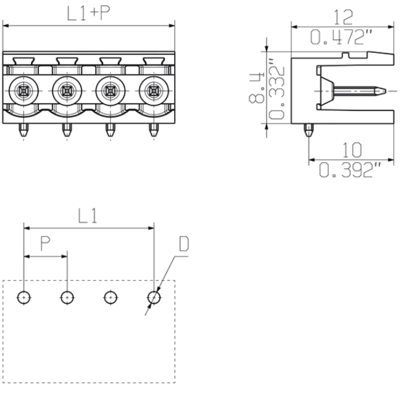

Printed circuit board connector, male connector, open side, THT/THR solder termination, 5.08 mm, no. of poles: 24, 90°, 1.5 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Additional parts | equipped | |
| Rated current | 27.5 A | |
| Version | pin header | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Grid | 5.08 mm | |
| Contact type | pin | |
| Pin number | 24 pole | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
