1774972001 | Weidmüller

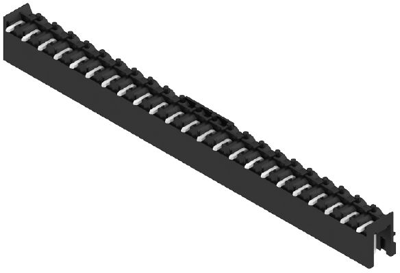

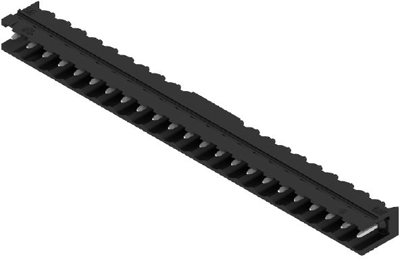

Pin header, 23 pole, pitch 5.08 mm, angled, black, 1774972001
Order No.: 52P0979
EAN: 4032248156009
MPN:
1774972001
SL-SMT 5.08HC/23/90 1.5SN BK BX
Unit Price (€ / pc.)
6.9020 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9020 €
10 pcs.
6.4260 €
50 pcs.
5.8310 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1774972001, Weidmüller
PCB Connector, Male Header, side open, THT/THR solder termination, 5.08 mm, no. of poles: 23, 90°, 1.5 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 27.5 A | |
| Grid | 5.08 mm | |
| Pin number | 23 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
